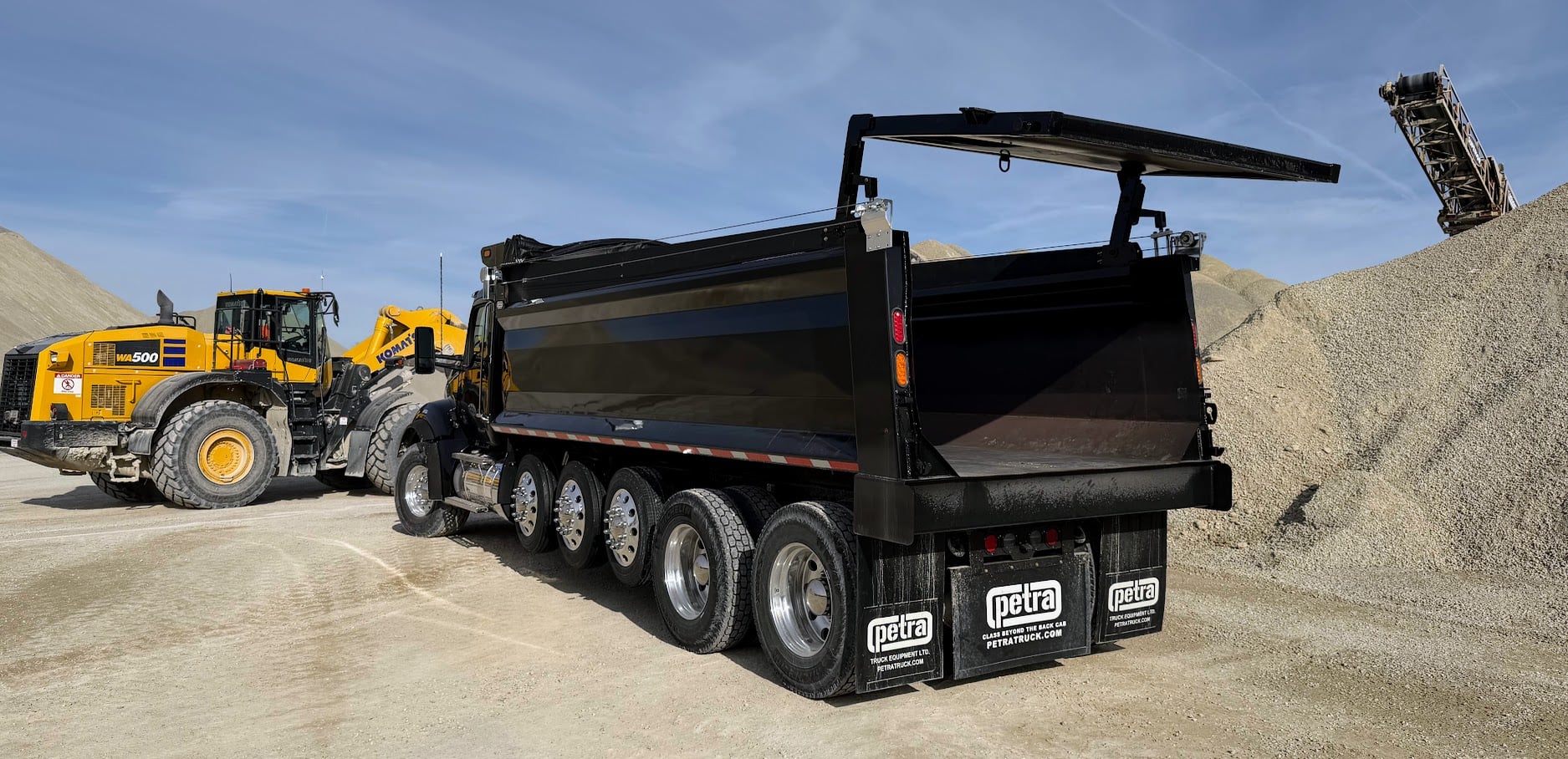

ROX4D Alpha & Apex Flat Floor
The industry's lightest weight steel dump bodies. 15% stronger and 1,200-2,500 lbs lighter than competitors.
Revolutionary Lightweight Design
ROX4D has redefined what's possible in steel dump body engineering. Using advanced Hardox 500 Tuff steel for the body and Strenx 110XF high-strength steel for longsills, ROX4D bodies deliver 15% more strength at approximately 4,500 lbs - that's 1,200-2,500 lbs lighter than traditional steel bodies.
Choose from two model lines - the versatile Alpha with multiple height options and fender materials, or the premium Apex with innovative single-piece sidewall and fender construction. Both available in three grades (Haul, Edge, Beast) to match your specific application.
Key Advantages
Lightest Weight
~4,500 lbs body weight vs 5,700-7,000 lbs from competitors
Hardox 500 Tuff Steel
Premium wear-resistant steel for exceptional durability and longevity
15% Stronger
Advanced materials engineering delivers superior strength at less weight
Maximum Payload
Carry 1,200-2,500 lbs more per load for greater revenue potential
Alpha vs Apex Model Comparison
Both models use Hardox 500 Tuff steel and are available in all three grades. Choose based on your height requirements and construction preference.
| Feature | Alpha | Apex (Premium) |
|---|---|---|
| Sidewall Construction | Single piece sidewall & toprail | Single sheet sidewall & fender |
| Standard Height | 42", 48", 54", 60" | 50" |
| Sloped Sidewall Option | Yes (66"-54") | No |
| Fender Width | 98" | 98" |
| Air Highlift Tailgate | Optional | Optional |
| 45° Front Corners | Optional | Optional |
| Access Door | Yes | Yes |
| Fender Materials | Aluminum, Steel, Stainless | Integrated with sidewall |
Steel Grade Comparison
| Component | Haul | Edge | Beast |
|---|---|---|---|
| Sides | 1/8" Hardox 500 Tuff | 5/32" Hardox 500 Tuff | 3/16" Hardox 500 Tuff |
| Floor | 5/32" Hardox 500 Tuff | 3/16" Hardox 500 Tuff | 1/4" Hardox 500 Tuff |
| Best For | Aggregate & asphalt | Construction & demolition | Severe service |
Grade Selection Guide
Haul Grade
Lightest option for aggregate and asphalt hauling
Edge Grade
Enhanced durability for construction and jobsite work
Beast Grade
Maximum protection for severe service - still lighter than competitors

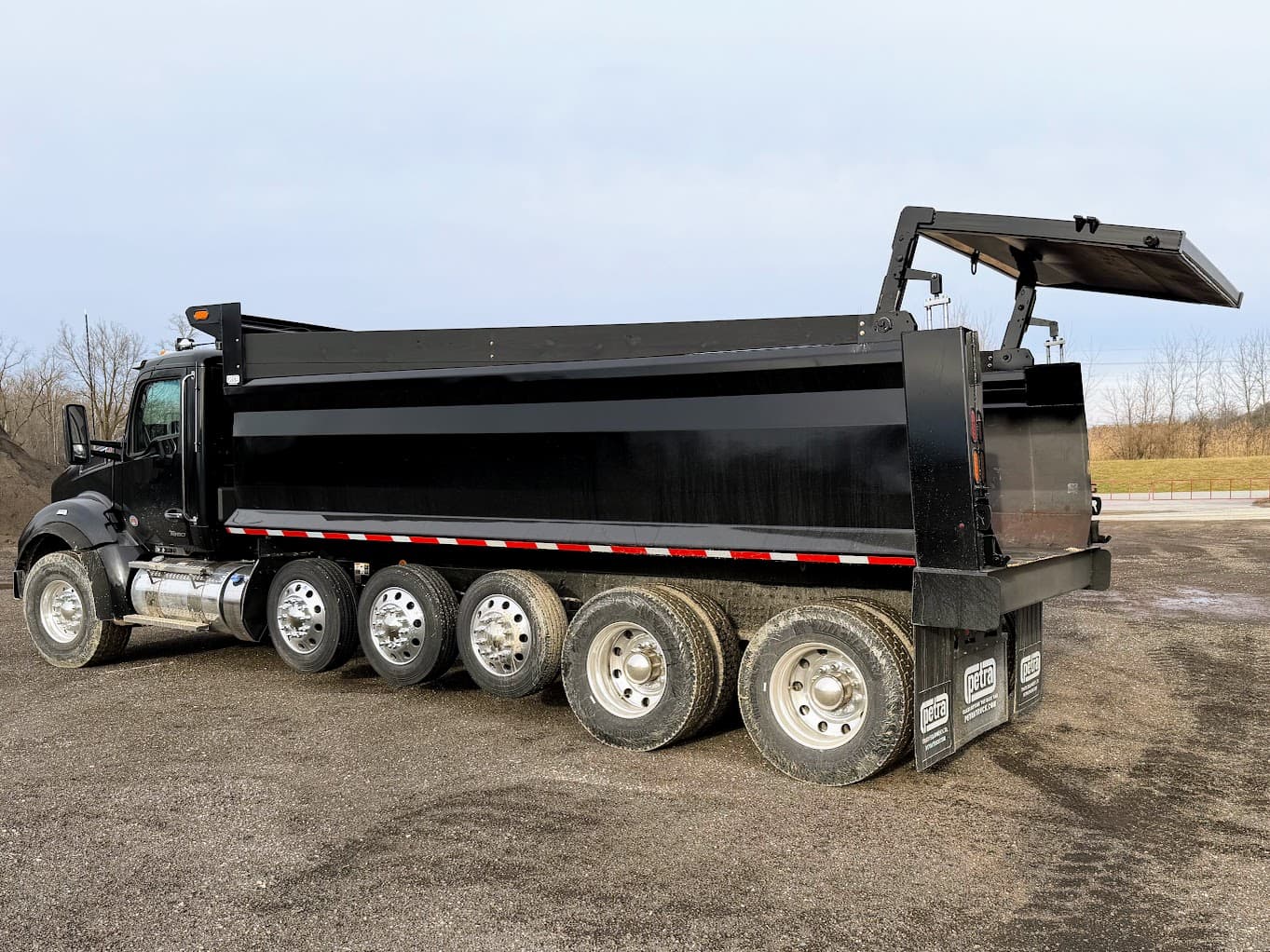

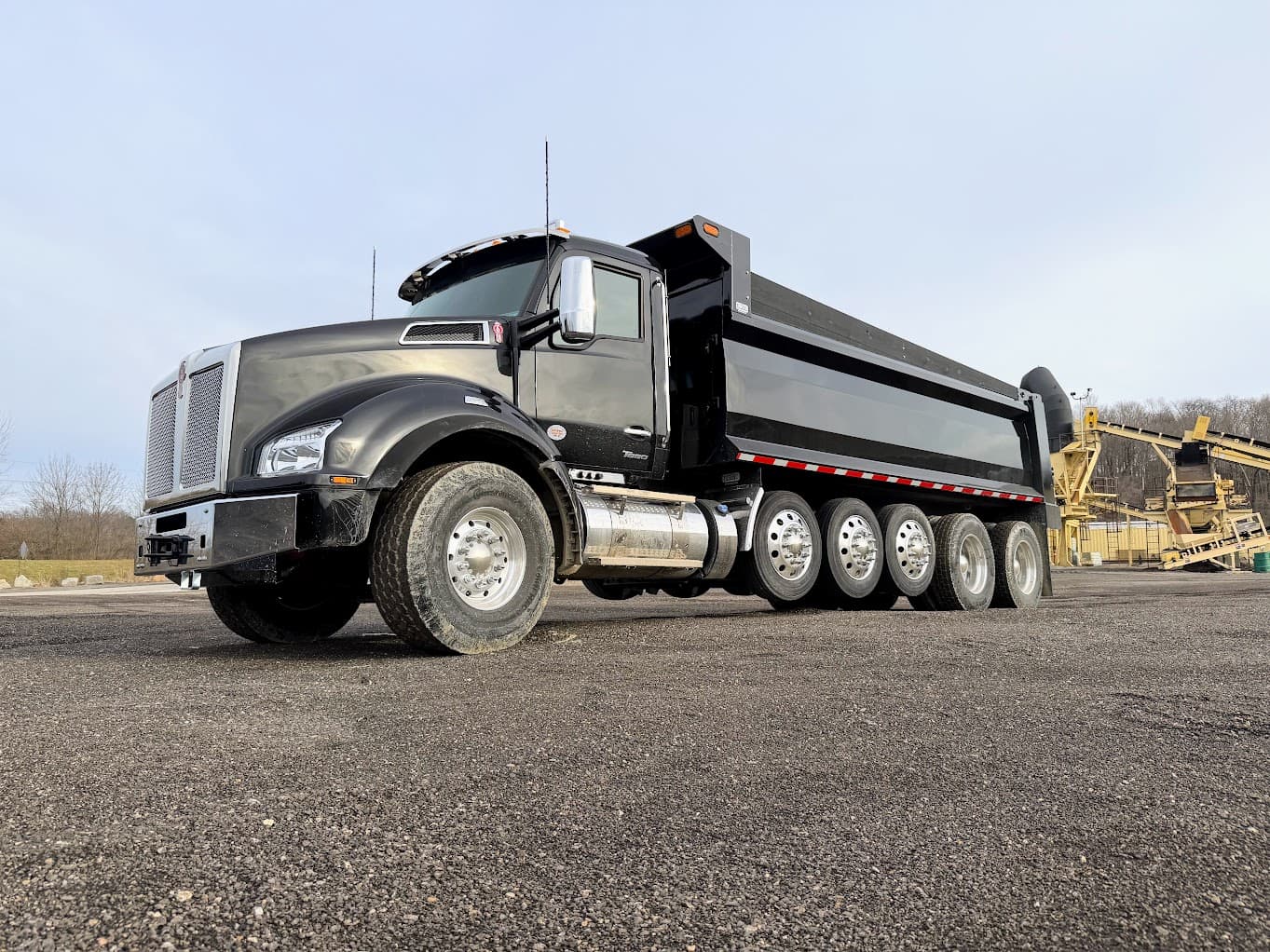

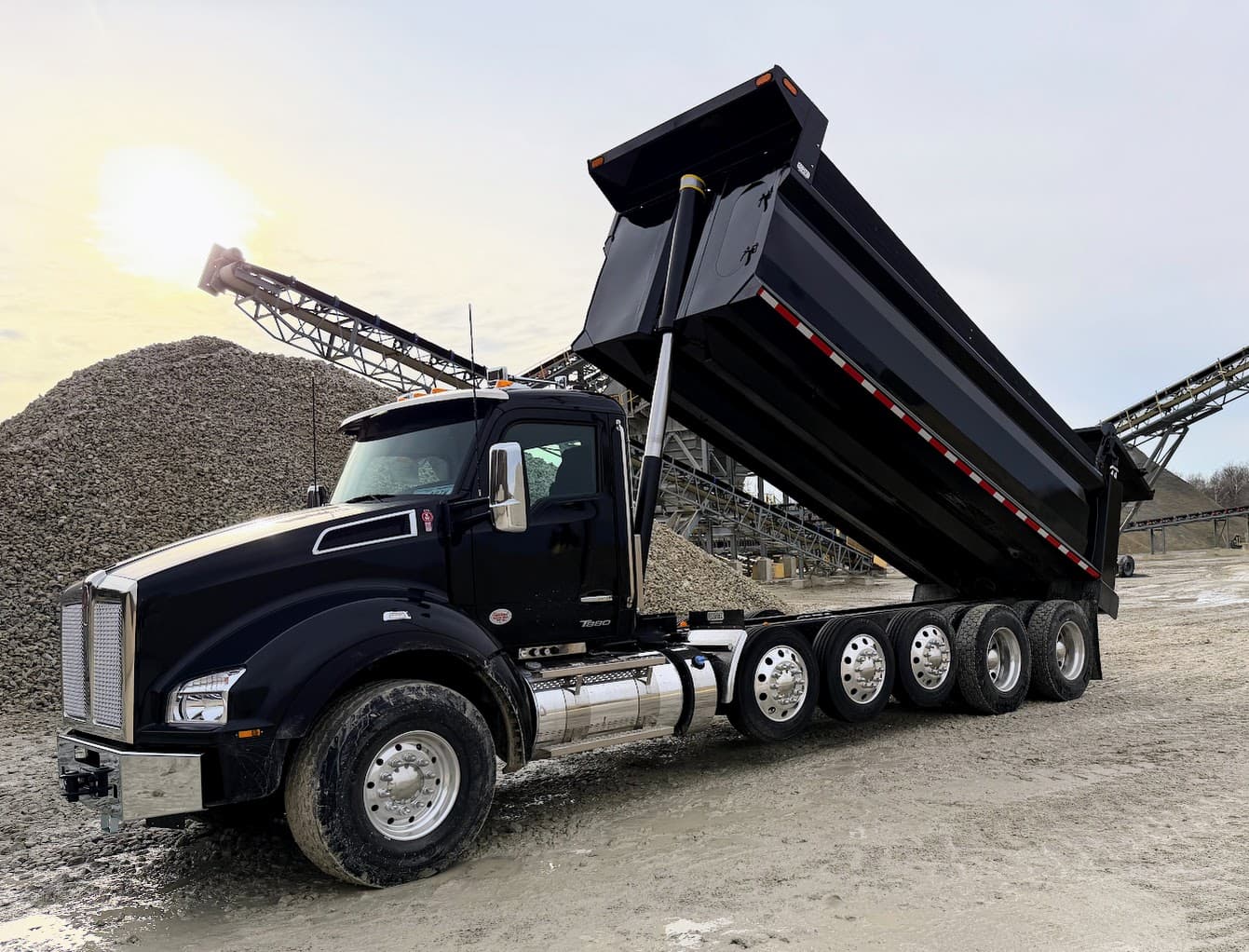

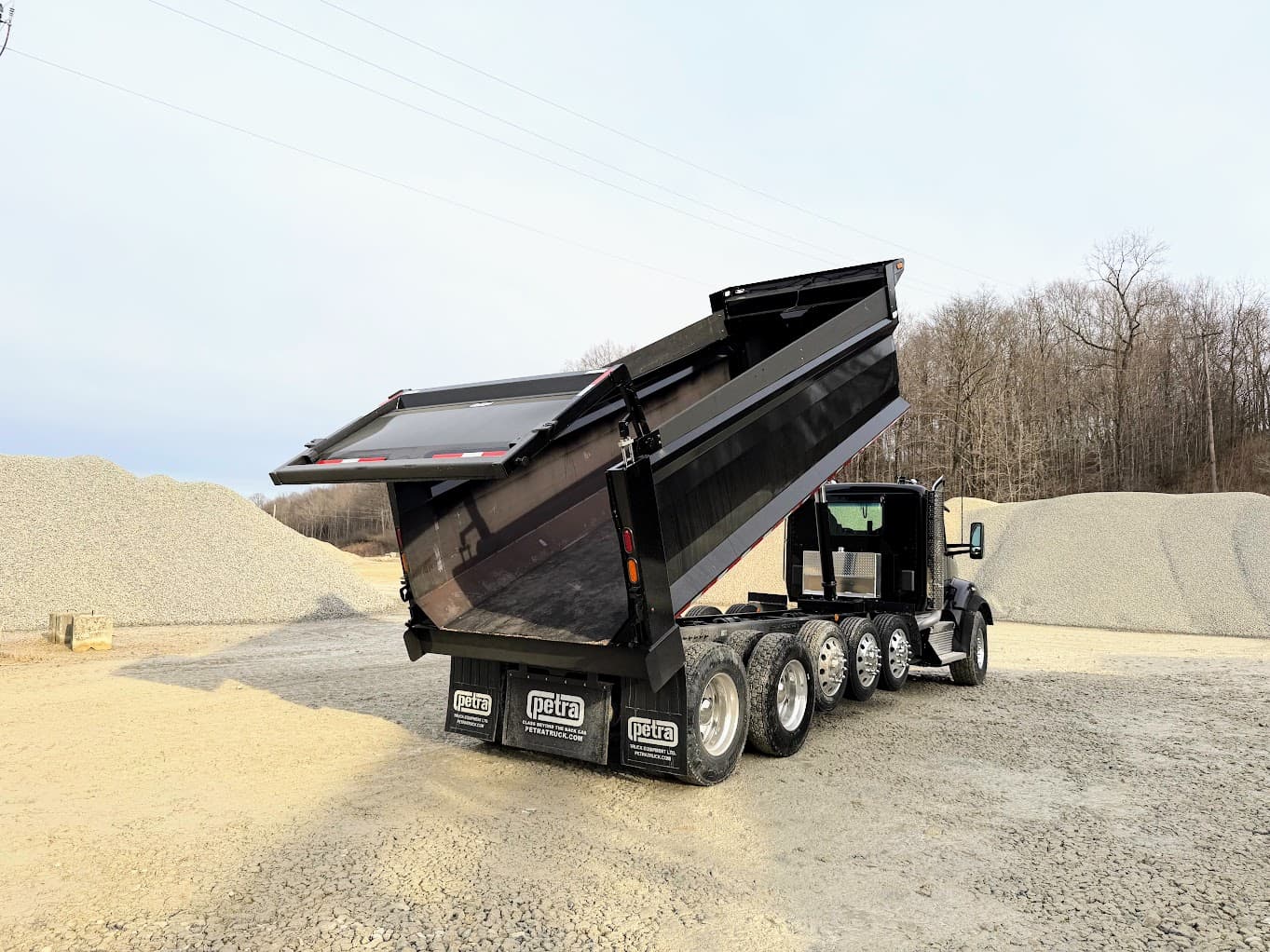

ROX4D Product Gallery
Alpha Model Design Highlights
98" Fender Width
Optimally sized to match standard heavy-duty truck chassis

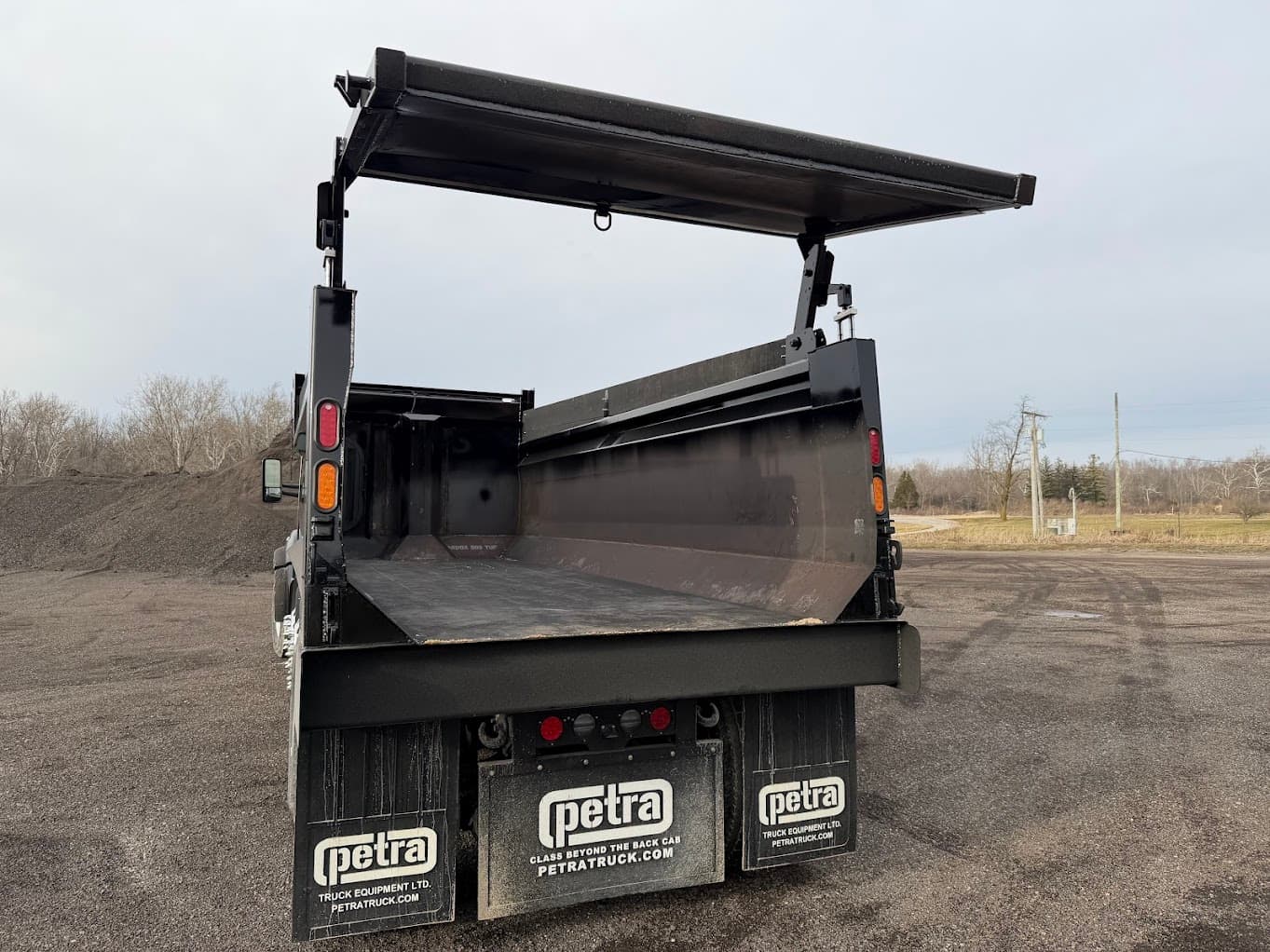

Optional Air Highlift Tailgate
Allows safe bed access during operation without climbing
Tapered Front to Rear Design
Body tapers from front to rear for improved material release
Access Door in Front Wall
Built-in access door for inspection without raising the body
Technical Specifications
- Models
- Alpha & Apex
- Floor Design
- Flat Level Floor
- Body Lengths
- 12' - 24'
- Side Heights (Alpha)
- 42", 48", 54", 60", Sloped 66"-54"
- Side Height (Apex)
- 50" Standard
- Fender Width
- 98"
- Body Material
- Hardox 500 Tuff
- Longsill Material
- Strenx 110XF
- Body Weight
- ~4,500 lbs
- Truck Class
- Class 7 & Class 8
Ideal Applications
- Aggregate and stone hauling
- Asphalt and paving operations
- Construction materials
- Demolition debris
- Fleet operations
- Weight-regulated hauling
Weight Comparison
Built Different
1,200-2,500 lbs Lighter
Comparable to aluminum body weight with steel body strength
Hardox 500 Tuff
Premium wear-resistant steel for maximum service life
Strenx 110XF
High-strength longsills for superior structural integrity
ROX4D Frequently Asked Questions
How much lighter is a ROX4D body compared to traditional dump bodies?
ROX4D bodies weigh approximately 4,500 lbs compared to 5,700-7,000 lbs for traditional steel dump bodies. That's a savings of 1,200-2,500 lbs, which translates directly to additional payload capacity and revenue potential of $36,000+ per year.
What's the difference between the Alpha and Apex models?
Both models are flat floor designs built with Hardox 500 Tuff steel. The Alpha offers more height options (42", 48", 54", 60", and sloped 66"-54") and multiple fender material choices. The Apex features innovative single-piece sidewall and fender construction for maximum weight savings and a standard 50" height.
What are the Haul, Edge, and Beast grades?
These are steel thickness options available for both Alpha and Apex models. Haul grade (lightest) is ideal for aggregate and asphalt hauling. Edge grade offers enhanced durability for construction and demolition. Beast grade provides maximum wear protection for severe service applications while still being lighter than competitors.
What sizes are available?
ROX4D Alpha and Apex models are available in lengths from 12' to 24'. The Alpha offers side heights of 42", 48", 54", 60", and a sloped 66"-54" option. The Apex comes standard at 50" height. All models feature a 98" fender width.
Ready for the Lightest, Strongest Dump Body?
Contact Petra Truck Equipment for expert consultation and competitive pricing on ROX4D Alpha & Apex dump bodies.
