NeuStar Radius Gravel Box
A smooth-sided Hardox® 500 Tuf box with no hard corners and no intermediate cross members — engineered to empty clean, load after load.
Download Spec Sheet (PDF)The NeuStar Advantage
The Radius Gravel Box is engineered for demanding hauling applications, featuring a Hardox 500 Tuf floor and gate for maximum abrasion resistance and long-term durability. Its smooth radius design eliminates hard corners and cross members, making the box easier to empty and keep clean with every load. Solid-seam welding delivers a stronger, smoother surface that further improves cleanout and performance.
As an authorized NeuStar dealer, Petra Truck Equipment is proud to offer NeuStar products with professional installation, competitive pricing, and ongoing support. Our team ensures your NeuStar dump body is properly installed and configured for optimal performance.
Outstanding Features

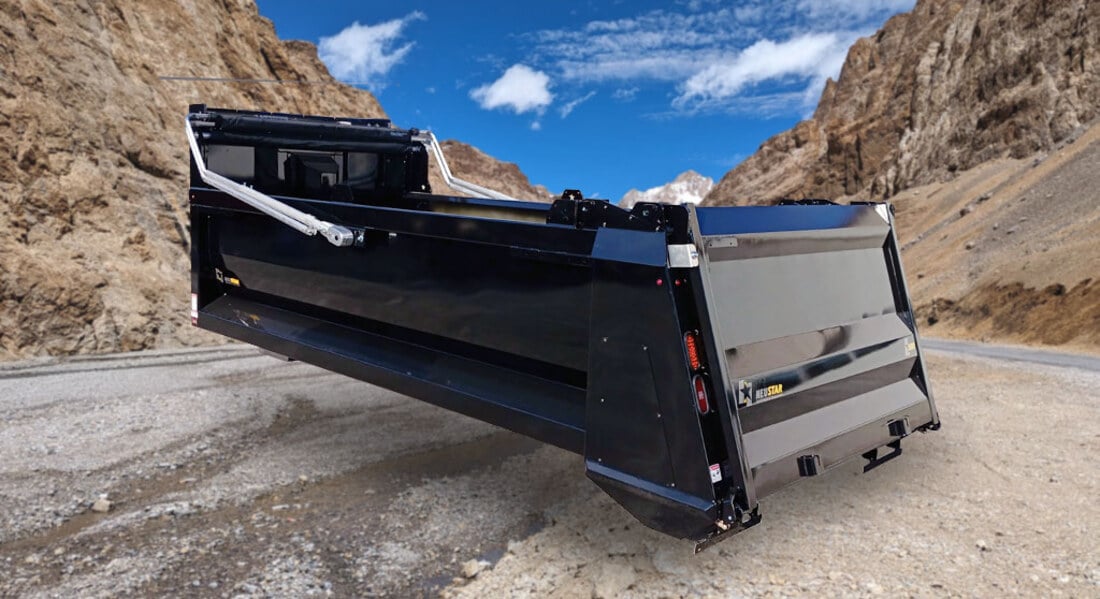

Smooth Radius Sidewalls
Formed Hardox 500 Tuf walls with 45° floor corners — the radius design eliminates hard corners
No Intermediate Cross Members
The load rides on 9.5" hat-sill longitudinal rails instead of intermediate cross members
Solid-Seam Welding
A stronger, smoother surface that further improves cleanout and performance
Hardox 500 Tuf Floor & Gate
Abrasion-resistant plate where the wear happens — floor, walls and tailgate
Dimensions & Configuration

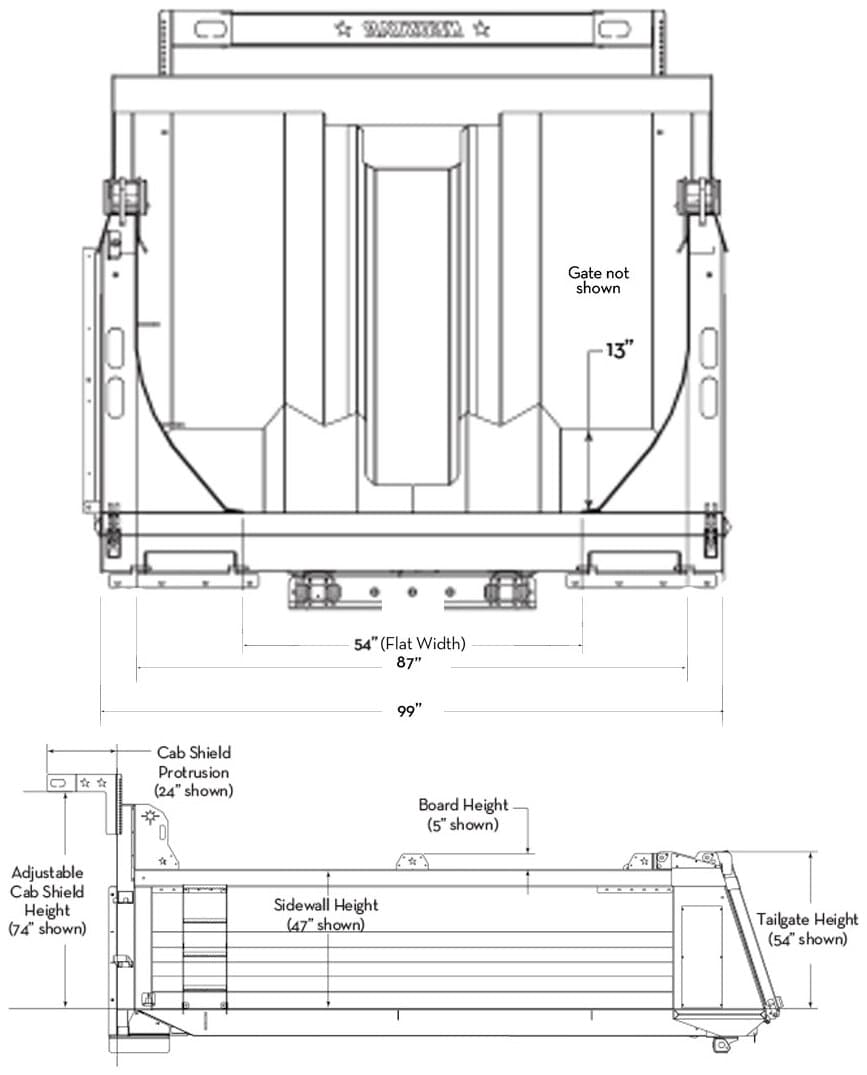

Representative dimensional drawing. Sidewall, board, tailgate and cab-shield heights shown are one configuration — yours is built to order.
- Model
- Radius Gravel Box
- Manufacturer
- NeuStar Truck Body & Trailer Mfg.
- Length
- 12′–24′
- Outside Width
- 101.5"
- Inside Width
- 88.5"
- Side Heights
- 24", 30", 36", 42", 48", 54", 60"
- Sloped Sides
- 60–48, 60–54, 66–60
- Board Height
- 6" or 12"
- Floor
- Hardox 500 Tuf — 4mm, 3/16", ¼" or 3/8"
- Walls & Front
- Hardox 500 Tuf — 4mm or 3/16"
- Understructure
- Hat sills — no intermediate cross members
- Dump Angle
- 45–50°
Spec’ing a truck? Box length drives hat-sill gauge, hoist mount and axle configuration, and cubic capacity follows from the final side and board height. Petra sizes the body, hoist and chassis together so the finished unit is legal on your routes.
Radius Design Advantages
Smooth Radius Sidewalls
Formed Hardox 500 Tuf walls meet the floor at 45° corners. The radius design eliminates hard corners, so material releases cleanly and the box is easier to empty and keep clean with every load.
No Intermediate Cross Members
The body carries its load on 9.5" × 3/16" hat-sill longitudinal rails rather than a ladder of cross members, leaving a clean understructure with less to pack with material.
Solid-Seam Welding
Welded with continuous solid seams rather than stitch welds, giving a stronger, smoother surface that further improves cleanout and performance.
Hardox 500 Tuf Wear Surfaces
The floor, walls and tailgate are Hardox 500 Tuf abrasion-resistant plate, with floor thickness selectable from 4mm up to 3/8" depending on how hard the body will work.
Built Around Hardox 500 Tuf
Inside width (101.5" outside)
Side heights, plus sloped options
Body lengths built to order
Standard Equipment
- Hardox 500 Tuf formed walls with 45° floor corners and 4×6 formed top tube
- 3/16" 50,000 hoist tower and 3/16" rear posts
- 9.5" × 3/16" hat-sill longitudinal rails — ¼" on boxes over 18′
- 10" × 2" × 3/16" structural formed tube channel rear cross member
- Hardox 500 Tuf formed tailgate, air cylinder operated with over-center locks
- Low-profile cab guard, 18" or 24", with oval cutout for strobes
Body specifications only. Hoist, hydraulics, controls, chassis equipment and options such as tarp systems, spray guards and body vibrators are spec’d and quoted by Petra to suit your truck — ask for a full build sheet.
Key Benefits
- Hardox 500 Tuf on the floor, walls and tailgate
- Smooth radius sidewalls with no hard corners to trap material
- No intermediate cross members underneath the box
- Solid-seam welding throughout for a smoother interior surface
- Sandblasted, primed and painted in Endura polyurethane
- 45–50° dump angle with a Masterbrand or Mailhot nitrated cylinder
Perfect For
- High-volume aggregate hauling
- Sand and gravel operations
- Crushed stone and road base
- Agricultural products
- Recycling materials
- General construction materials
Hardox® 500 Tuf Where It Counts
Abrasion-resistant plate on the floor, walls and tailgate, with floor thickness from 4mm up to 3/8".
NeuStar Design Excellence
Radius Sidewalls
Formed walls with 45° floor corners and no hard corners to trap material
Clean Understructure
Hat-sill longitudinal rails with no intermediate cross members
Hardox 500 Tuf
Abrasion-resistant plate on the floor, walls and tailgate
Perfect for Gravel & Aggregate Operations
The radius profile and clean understructure make this box well suited to gravel, crushed stone, sand and other aggregates — material releases cleanly and the body stays easy to wash out between loads.
Compare Curved-Wall Models
Both the Diamond Elliptical and the NeuStar Radius trade hard corners for a curved profile that empties clean. Our team can help you compare features, specifications and pricing to find the right body for your operation.
Get Expert AdviceNeuStar Radius Frequently Asked Questions
What makes the Radius different from a square gravel box?
The sidewalls are formed with a radius instead of meeting the floor at a hard corner, and the floor corners are angled at 45°. That combination gives material nowhere to pack into, so the box empties and cleans out more easily. NeuStar also builds it without intermediate cross members and with solid-seam welds, both of which help cleanout and durability.
What does "no intermediate cross members" actually mean?
The body carries its load on 9.5" × 3/16" hat-sill longitudinal rails that run the length of the box — ¼" sills on bodies over 18′ — rather than a series of cross members spanning between them. There is still a 10" × 2" × 3/16" structural formed tube channel cross member at the rear, where the tailgate and rear-end loads concentrate.
What sizes does the Radius Gravel Box come in?
Bodies are built from 12′ to 24′ long, 101.5" outside and 88.5" inside width. Side heights run 24", 30", 36", 42", 48", 54" and 60", with sloped options of 60–48, 60–54 and 66–60, plus a 6" or 12" board. Petra will size the body to your chassis and axle configuration.
What steel is the Radius built from?
Hardox 500 Tuf abrasion-resistant plate on the wear surfaces. The floor can be specified in 4mm, 3/16", ¼" or 3/8", and the front, doghouse and walls in 4mm or 3/16". The hoist tower and rear posts are 3/16" 50,000 structural steel. The standard build is a complete 4mm Hardox 500 Tuf box with a 3/16" 500 floor.
